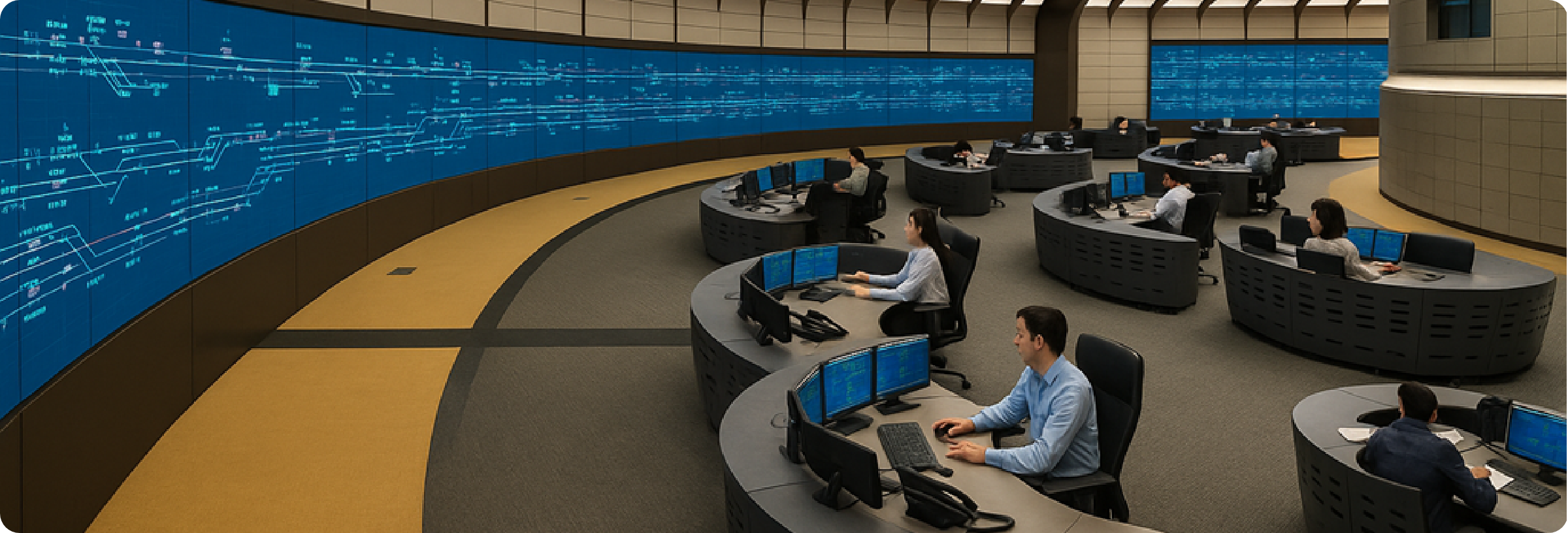

Railway Control

The train control system is called Automatic Train Supervision (ATS)
and is a control solution applied to three systems.

Railway Control
  • 01
    General and Urban Railway Control Equipment

    An integrated control system that manages train operations and signal status in real-time

  • 02
    Light Rail Control Equipment

    A Korean-style automatic train control system that supports unmanned driving

  • 03
    Tram Control Equipment

    An electric-powered, low-cost, low-pollution eco-friendly transportation system

General
and Urban Railway Control Equipment

* CTC :
Centralized Traffic Control

Centralized Traffic Control (CTC) : A system that remotely controls multiple stations and tracks from a central control room.

The Centralized Traffic Control (CTC)* enables controllers at the main control center to monitor all train operations and signaling equipment status within the CTC area in real time. It allows remote control of signals and track switches along train routes, ensuring safe and efficient train operation management.

Project Scope

  • Railway Sector :
    High-speed rail, conventional rail,
    urban rail control
  • 4th Industrial Sector :
    Smart integrated control, screen door control
  • Other Sectors :
    Solar power, hydrogen, and smart dam control

Core Products

  • All sectors for control equipment
  • AI technology
  • Digital Twin technology

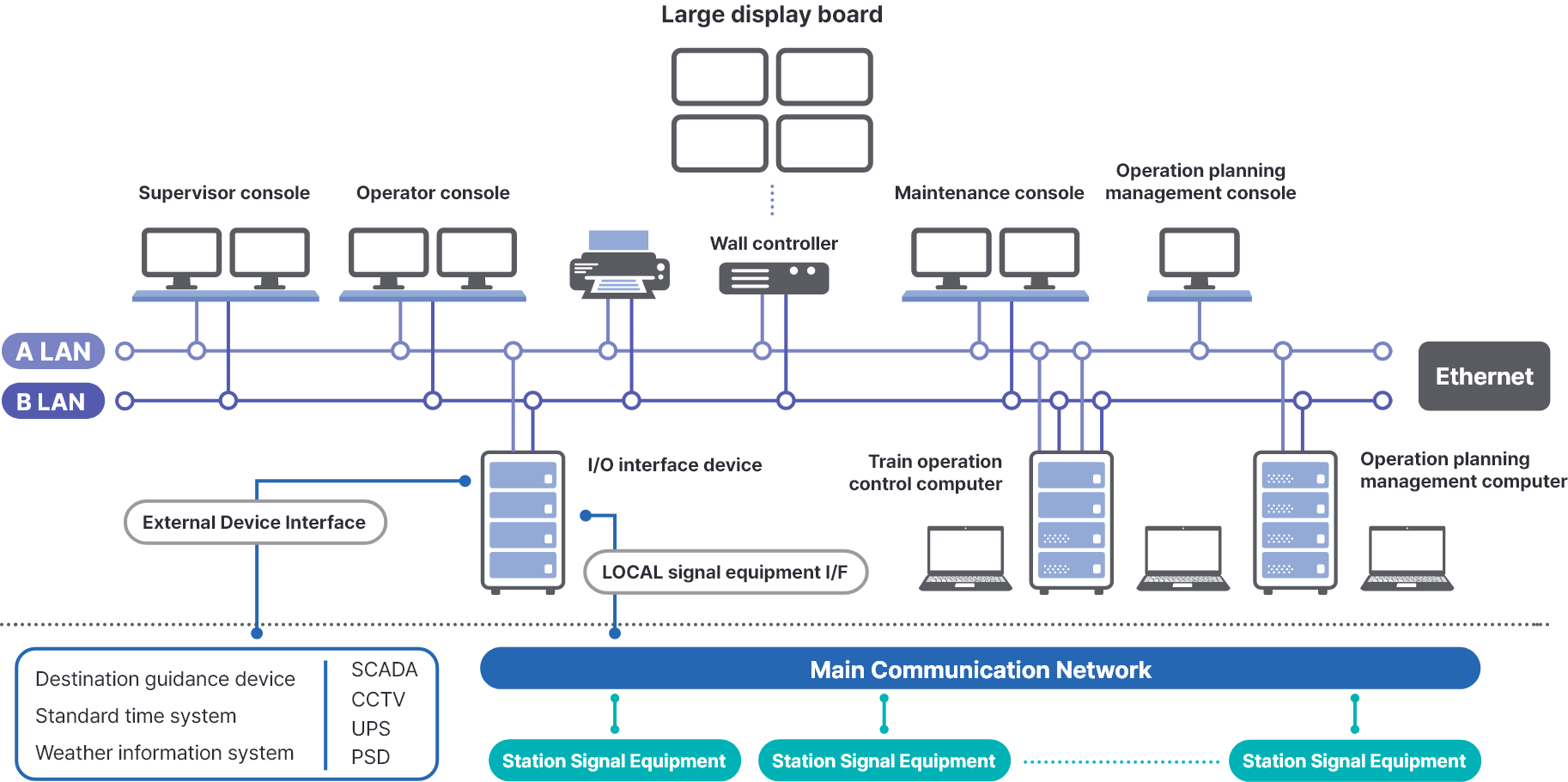

Configuration of Conventional and Urban Railway Control Systems

Configuration of Conventional and Urban Railway Control Systems

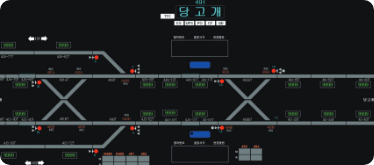

  • Seoul Subway Line 4
    Seoul Subway Line 4

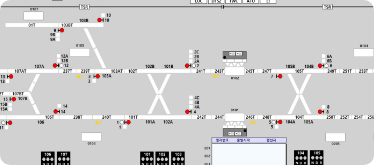

  • Seoul Subway Line 8
    Seoul Subway Line 8

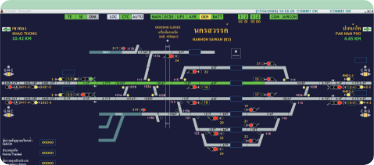

  • Thai State Railway
    Thai State Railway

Light Rail Control Equipment

* CBTC :
Communication Based Train Control

Communication-based Train Control System

The light rail control system applies the Korean Train Control System for Metro (KTCS-M),
providing core functions for efficient unmanned operation and maximizing the safety and efficiency of train operations through its diverse features.

The light rail control equipment based on KTCS-M is an essential system
for the safe and efficient unmanned operation of light rail.

  • Remote Train Control : Remotely controls train operation functions, such as automatic departure control, door control, automatic turnaround, train start and stop
  • Train Operation Management : Supports trains to operate autonomously through train tracking, train number control, automatic route control, etc.

Project Scope

  • CBTC* and KTCS-M based unmanned operation control equipment

Core Products

  • Control equipment and local control console for unmanned operation

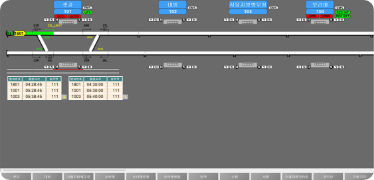

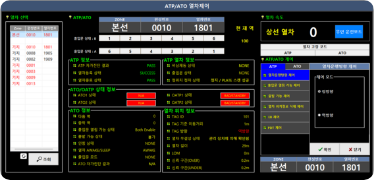

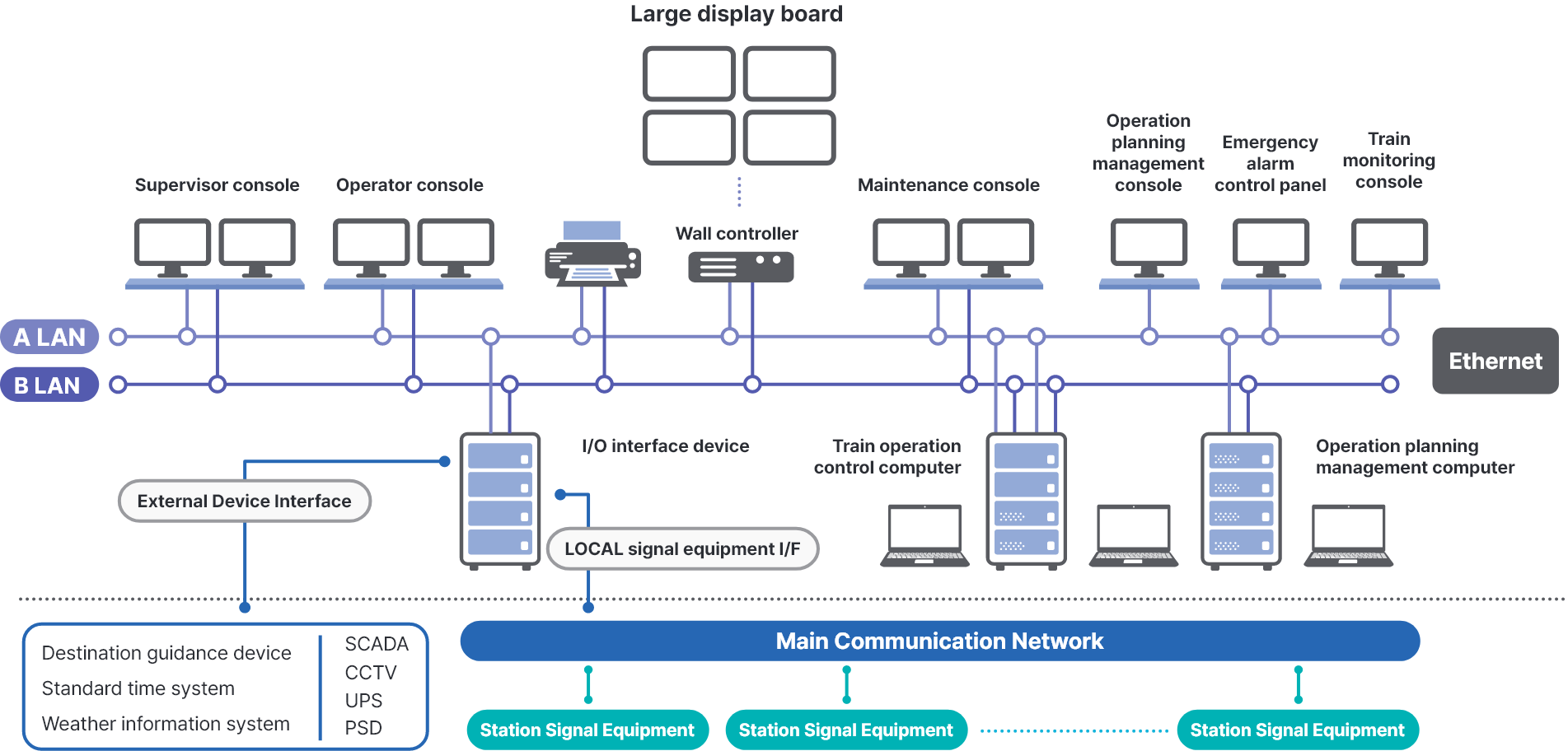

Composition of Unmanned Operation Control System

Composition of Unmanned Operation Control System
  • Composition of Unmanned Operation Control System
  • Composition of Unmanned Operation Control System
  • Composition of Unmanned Operation Control System

Tram Control Equipment

Trams, operating on more than 2,300 lines across over 50 countries,
are eco-friendly transportation systems powered by electricity.
They produce minimal emissions and have construction costs that are significantly lower than those of subways or light rail systems —
approximately one-sixth the cost of a subway.
Techville is currently successfully executing the Wirye Tram Project.

Project Scope

  • Environmental Sector: Tram

Core Products

  • Tram Control Equipment
  • Tram Safety Interlocking Controller
  • Tram On-board
    Signaling System
  • Tram Interlocking Traffic
    Signal Controller

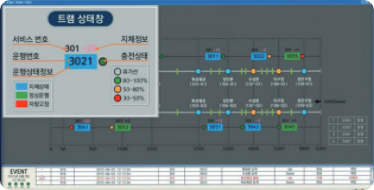

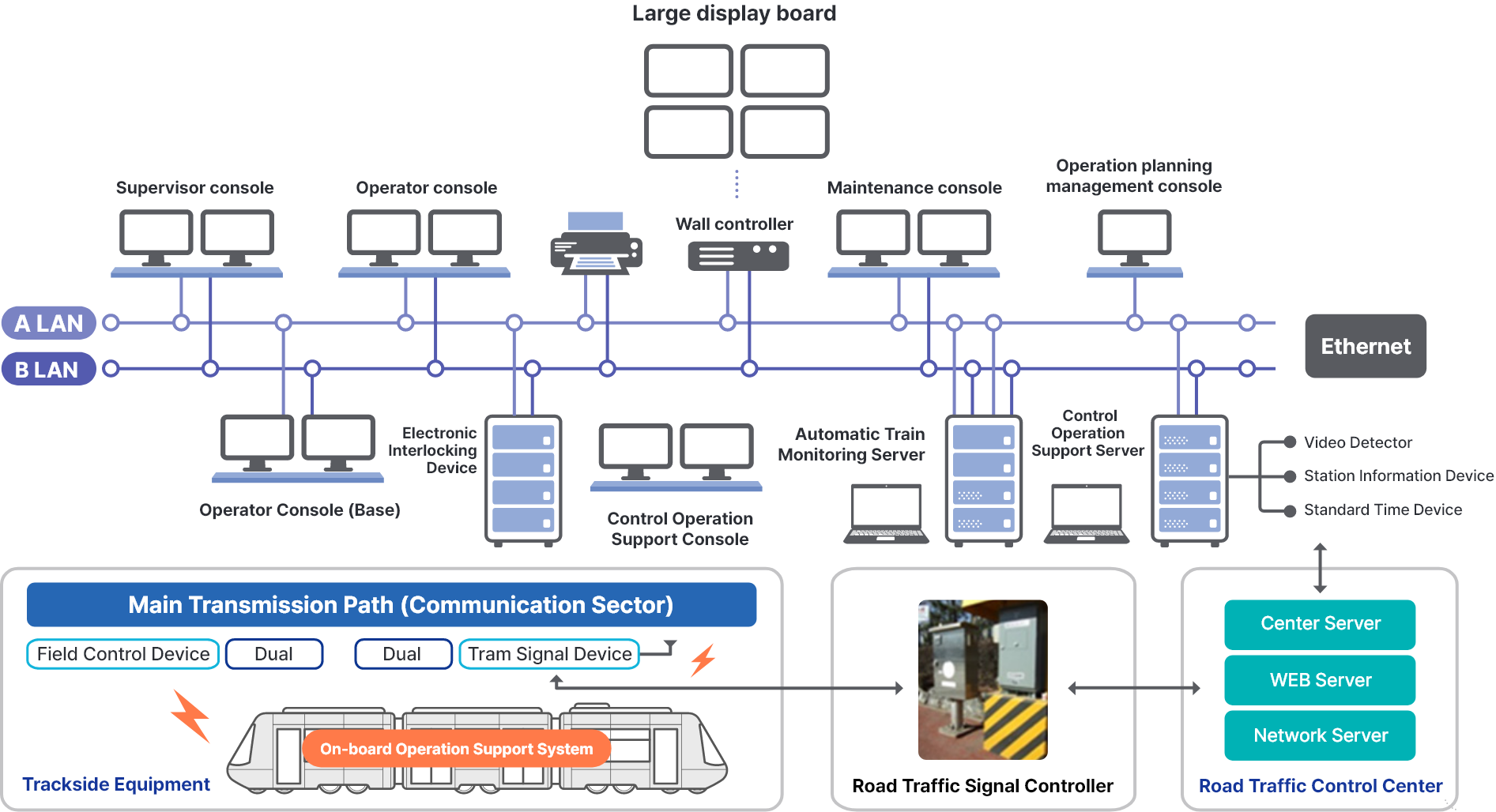

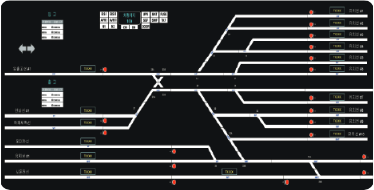

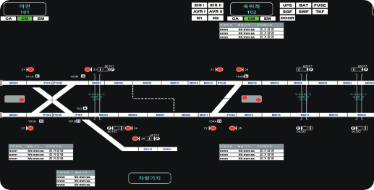

Composition of Tram Control Equipment and On-board Signal Device

Composition of Tram Control Equipment and On-board Signal Device
  • Composition of Tram Control Equipment and On-board Signal Device
  • Composition of Tram Control Equipment and On-board Signal Device
  • Composition of Tram Control Equipment and On-board Signal Device
