Trackside Signaling Device

The trackside signaling device is installed along the railway to ensure the safe and efficient operation of trains. It primarily detects train speed, position, and direction to control train movements and maintain safe intervals between trains.

Trackside Signaling Device
  • CDTS

    • CDTS (Central Data Transmission System) is a central information transmission device installed in the signal control room. It receives train operation data and the status of field equipment from local signaling devices and transmits them to the Train Control Center (TCC), while also relaying control information received from the TCC back to the local signaling equipment.
  • CDTS

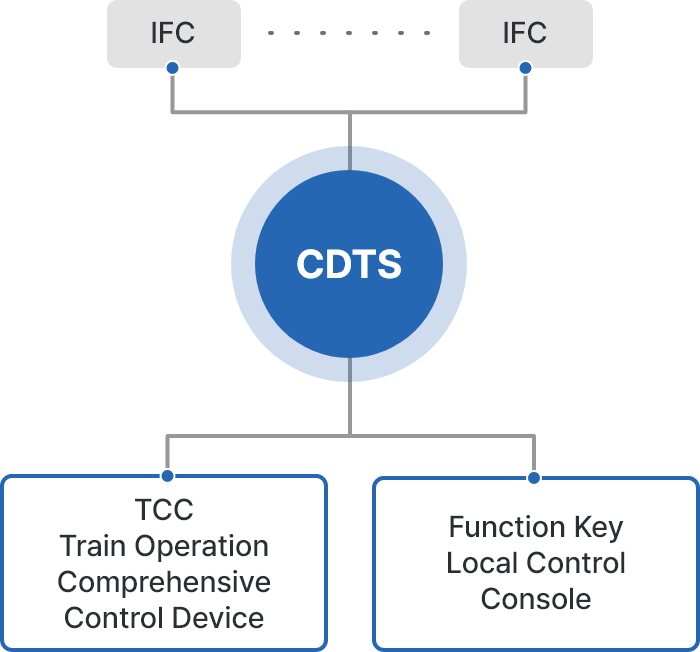

    System Configuration

    CDTS
  • Key Functions and Features

    • 01
      Real-time transmission of train location and signal information
    • 02
      Real-time data logging and display in Korean
    • 03
      Execution of control commands from the comprehensive control center
  • Support Fields

    • Daegu Metro Line 1 Ansim–Hayang Extension Control Signal Equipment Room
    • Seoul Metro Line 9 Control Signal Equipment Room
    • Control Signal Equipment Rooms for Local Government Subway Lines, etc.
