Trackside Signaling Device

The trackside signaling device is installed along the railway to ensure the safe and efficient operation of trains.
It primarily detects train speed, position, and direction to control train movements and maintain safe intervals between trains.

Trackside Signaling Device
  • IP-based Station Information Transmission Device

    • The IP-based station information transmission device is a system installed in the machine room of field stations on both conventional and high-speed lines.
    • It receives display information from the interlocking device (or FEPOL) and transmits it to the control center to monitor train operation status.
    • After receiving control commands from the control center, it performs the function of transmitting the corresponding commands to the interlocking device (or FEPOL).
  • IP-based Station Information Transmission Device

    System Configuration

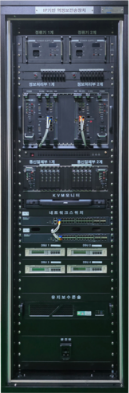

    IP-based Station Information Transmission Device
  • Key Functions and Features

    • 01
      Enhanced station equipment functions in line with the establishment of the Second Railway Traffic Control Center
      • Enhanced data processing capability through the selection of modules equipped with high-performance CPUs
      • Strengthened data processing and transmission capabilities through two information processing modules
      • Enhanced Ethernet-based hardware structure for TCP/IP communication
    • 02
      Enhanced stability, reliability, and scalability of external interfaces
      • Enhanced stability and reliability through the application of SIL4 certified modules (Safety Information Processing Modules)
      • Design guarantees scalability in preparation for future upgrades of the First Control Railway Traffic Control Center
      • Functionality implementation by embedding separate HW equipment for STU within the information processing unit
  • Support Fields

    • Applied to the system linking field stations and control centers
    • General Railway Field Station Signal Machine Room
    • High-Speed Railway Field Station Signal Machine Room
    • Metropolitan Railway Field Station Signal Machine Room
